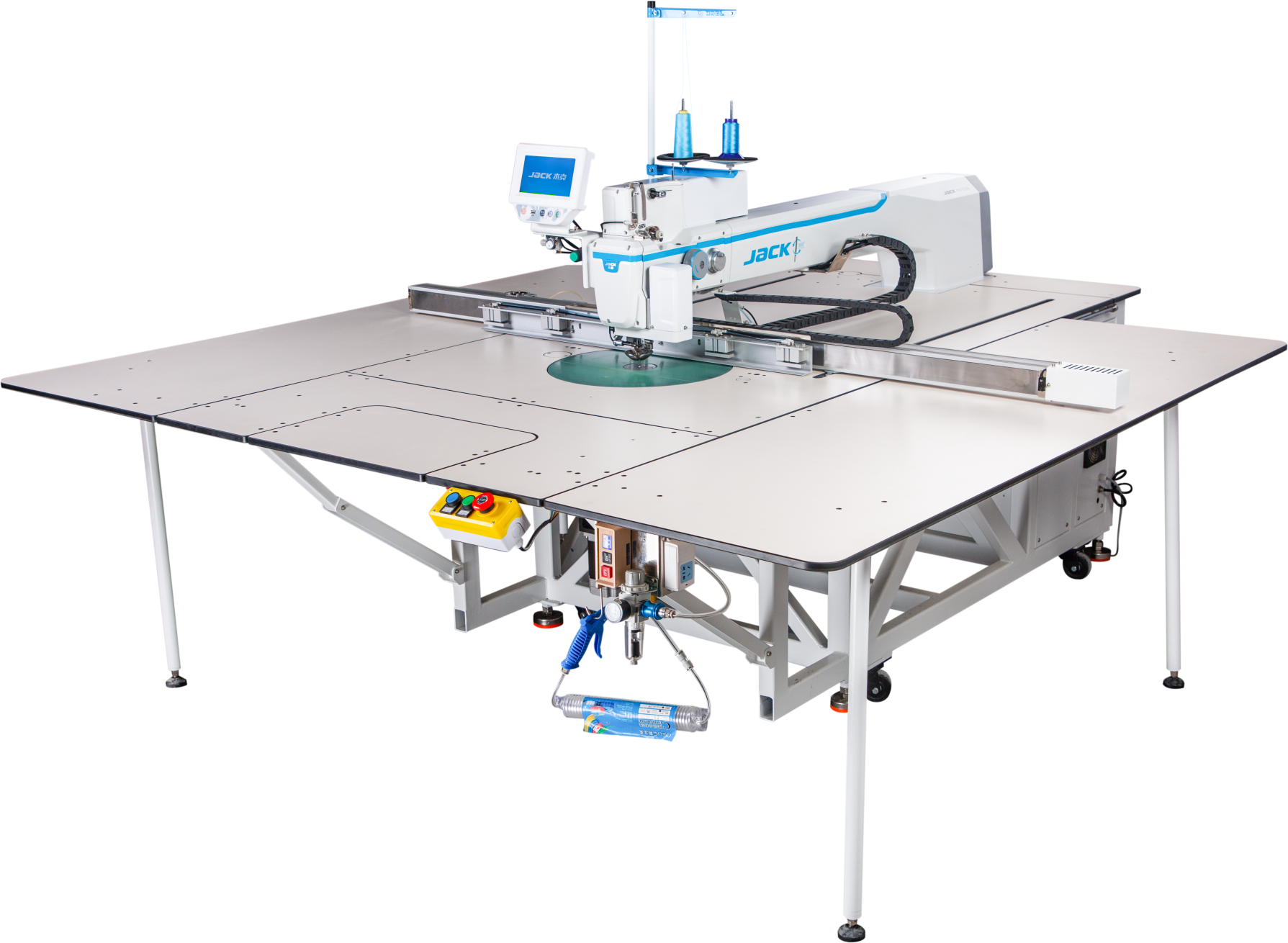

Jack MX-100A


CNC Pattern Sewing Machine

Pattern Field Machine with 1400 x 950mm sew area with 360° rotating Needle bar for curved seams in all directions.  Front and Side tables fold and slide to reduce overall dimensions quickly, making it easier to move without disassembly. The double screw transmission design improves transmission accuracy, reduces vibration and improves seam stability. The tracks with recirculating ball slide where the Y axis slides prevent dust and thread remnants from settling, reducing fluidity.


This machine can be used for a wide variety of jobs from lightweight down jackets, collars, pockets, and shirts to more heavier weight jobs such as leather bags, automative, and home decor. This machine comes complete with the ability for on-board programming, using a simple and intuitive interface, it is possible to create programs from the display or via PC software and import them via USB or wifi with IOT. Complete with RFID reader, this machine, reads magnetic disks, making it possible to save the sewing design countless times. When you bring the template closer, the reader will automatically change the drawing to the pattern saved on the RFID disk.


This machine come standard as 220v with built in Direct Drive Motor.




  • Y Direction: 950MM

  • X Direction: 1400mm

  • Lubrication Type: Dryhead Technology (No Oil Required)

  • Max Sewing Speed: 2800RPM

  • Hook Size: Big Hook (L)

  • Built-In Memory: Stores 999 Patterns

  • Stitch Length: 0.1 mm – 12.7 mm

  • Presser Foot Height:  up to 15 mm

  • Open Frame: 1400 x 950 mm is included

  • Needle system: DPx17 or DPx5

  • Min - Max Thread Size Recommended: Tex45-92

  • Needle Sizes: #9 - #18



Installation and Training is available. Contact us for a quote!


Can't find what you're looking for? Let us help you. Please Contact Us


Industrial Sewing Machines, Lockstitch Sewing Machines, Lock Stitch Sewing Machines


    Returns are accepted within 30 days. Machine must be returned in like new condition. Buyer is responsible for cost of shipping to return. All returns are subject to a 30% restocking fee.

$27,995.00 Regular Price
$22,995.00Sale Price
